Lazer Lamps 3-Lamp Carbon Rally Kit
Description
Product Description
- Universal lightweight bonnet mounting systems
- Complete with 2x Carbon-6 DRIVE and 1x Carbon-6 SPOT LED driving lights
- Quick fit and release functionality
- Universally compatible with any vehicle
- Multiple lighting modes including secondary ‘fog’ beam pattern
- Assembly required
- Compatible vehicle wiring kits available – sold separately
- Manufactured in the UK
- 5 year warranty
Technical Specs;
Based on: 2x Carbon-6 DRIVE and 1x Carbon-6 SPOT in E-Boost Mode.
| Voltage Range (DC) | 10-32V |
| LED Life | 50,000 hours |
| Quick Release Capable | Yes |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 28080 Lm |
| Total Driver 'FOV' Flux † | 19619 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 3 x 36 |
| Power Consumption | 255 W |
| Current Draw (at 14.4V) | 18.3A |
| PHOTOMETRIC DATA | |
| 0.25 lx Line | 2049m |
| 0.5 lx Line | 1449m |
| 1 lx Line | 1025m |
| 3 lx Line | 592m |

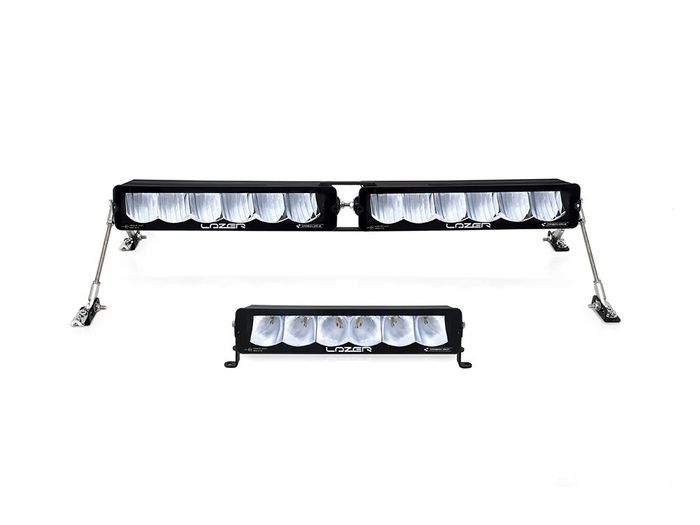

Taking our universal rally lighting solutions to the next level, our 3-lamp kit comprises a pair of Carbon-6 Drive high performance LED driving lights mounted to the vehicle bonnet using our Boomer Single quick-fit and release bonnet mounting system. Mounted centrally below this, a single Carbon-6 Spot fixed using a lightweight aluminium mounting bracket. Combined the lights deliver incredible distance illumination with superior lighting performance in the short to mid-range.
Once assembled, the complete lighting kit of 3 lamps plus mounting brackets weighs 1750g, but don’t let the diminutive weight mislead you, the lights combine to produce 28,080 raw lumen, with 1lux extending to comfortably over 1km with nearly 70 degrees of left/right spread. The colour temperature at 5000K, combined with the perfectly homogenous light distribution has been tested and approved at the top levels of WRC.
The suitability of the lights to rally applications is furthered by the option to operate the lights in a secondary ‘fog’ mode, where the distribution of the light output is modified accordingly. The addition of Black and Amber lens covers included with each light also adds to the lamps looks and functionality.
Assembly required. Comes with wiring harness
