Lazer Lamps One-Lamp 3-Pin Superseal Wiring Kit (12V)

Stock Code:
1L-LP-PL-120
Stock Level:
IN STOCK ORDER NOW FOR IMMEDIATE DESPATCH
Price:
$79.99(inc gst)

Description

  • One-Lamp Wiring Kit for Lazer Lamps LED High Performance Lights (see product text for compatibility)
  • 1.2m cable length
  • Includes 12V relay and 20 amp fuse
  • Relay holder approved to IP53 when mounted in a vertical (upright) orientation
  • Superseal connections
  • Includes optional on/off switch for independent operation of high beam
  • Braided cable sections for added protection in engine bay

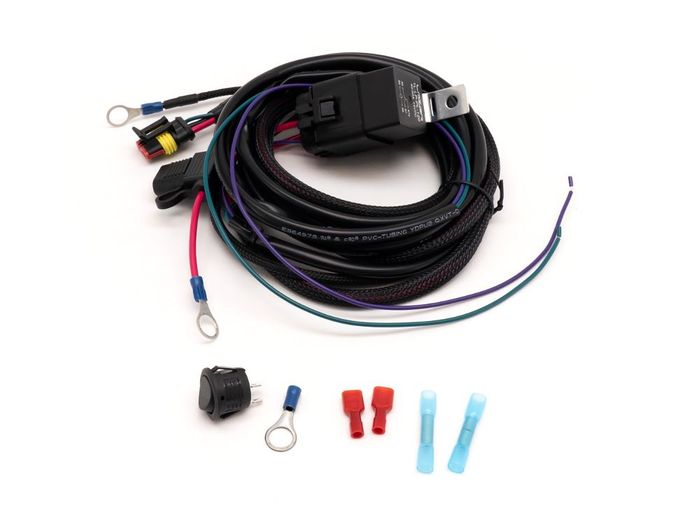

One-Lamp wiring kit for Lazer Lamps High Performance LED lights. The setup is quick, easy, and reliable with 3-pin Superseal connection and no configuration procedures. The kit features a 12V relay (in waterproof housing), fuse, a battery terminal at one end, and 1.2m of flex on the lamp cable, and allows for the operation of Lazer products either in parallel with the standard lighting on the vehicle, and/or via an independent switch which can be mounted inside your vehicle.

All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.

Compatible with:

  • Triple-R 750 (Gen2)
  • Triple-R 850 (Gen2)
  • Triple-R 1000 (Gen2)
  • Triple-R 1250 (Gen2)
  • Linear-12 Elite (with Position Light)
  • Linear-18 Elite (with Position Light)
  • Sentinel 7'' Elite
  • Sentinel 9''
  • Sentinel 9'' Chrome
  • Sentinel 9'' Elite (with Position Light)
