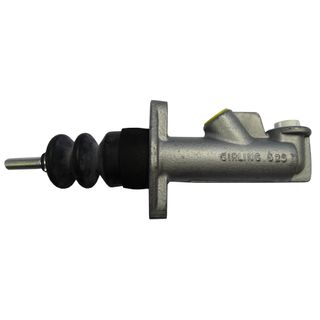

Alcon Straight Flange Master Cylinder
Stock Code:
MS625
Stock Code:
MS700
Stock Code:
MS750
Stock Code:
MS812
Stock Code:
MS875
Stock Level
IN STOCK ORDER NOW FOR IMMEDIATE DESPATCH
OUT OF STOCK – BACKORDER NOW
OUT OF STOCK – BACKORDER NOW
IN STOCK ORDER NOW FOR IMMEDIATE DESPATCH
IN STOCK ORDER NOW FOR IMMEDIATE DESPATCH
OUT OF STOCK – BACKORDER NOW
Price:
$399.00(inc gst)
Price:
$399.00(inc gst)
Price:
$399.00(inc gst)
Price:
$399.00(inc gst)
Price:
$399.00(inc gst)
Description
Applications
- General Race and Rally use.
Key features and benefits
- Suitable for brake and clutch applications.
- Standard 57.2 (2.25”) mounting centres, interchangeable with other manufacturers’ master cylinders.
- Breather port clearance (cut-off travel) calibrated during assembly to provide controlled lost travel.
- Rubber dust excluder boot.
- Non-standard push rods available on request.
- Versions with non-captive push rods available on request.
- Push rod length from flange is 115mm with 50mm thread length. Shorten push rod as required.
- Fluid inlet port 0.437-20 UNF (-4) Tightening torque 18-22Nm with a copper washer.
- Fluid outlet port 0.375-24 UNF (-3) Tightening torque 17-20Nm with a copper washer.
- To avoid trapping air, install it with the ports uppermost. The fluid outlet port must not be below the horizontal axis.
- Push rod angularity must not exceed 5° throughout the full travel.
- Weight 0.31Kg.
